Headingly® - Steel Picket Fencing
HEADINGLY® BLUEDOG FENCes
Steel picket fencing system
Headingly® is our proprietary system designed to enclose sporting ovals, assist control the movement of pedestrians and vehicles, or to simply enhance the amenity and aesthetics of open space areas. The tubular steel design retains the heritage feel of a traditional timber picket fence but is much stronger and requires much less maintenance. The standard assembly consists of 2400mm long x 900mm high panels with uprights welded to horizontal rails and secured to posts with proprietary Smarta-Bracket® and anti-tamper fastenings.
The premium grade pre-galvanised steel surface is meticulously cleaned and prepared in a 7-stage chemical pre-treatment process and finished in a highly durable polyester powder coat that will look great for years to come. The fencing and gate system is pre-fabricated and is assembled readily on site with no need for cutting and welding.
Enclose sporting
grounds ovals
Control pedestrian
and vehicle movement
Enhance amenity &
aesthetics of open spaces
Lean Manufacturing process
HEADINGLY® - STEEL PICKET FENCING FEATURES
Headingly® - Steel Picket Fencing Specifications
Standard
| PANEL HEIGHT | 900mm STANDARD |
| PANEL LENGTH | 2400mm |

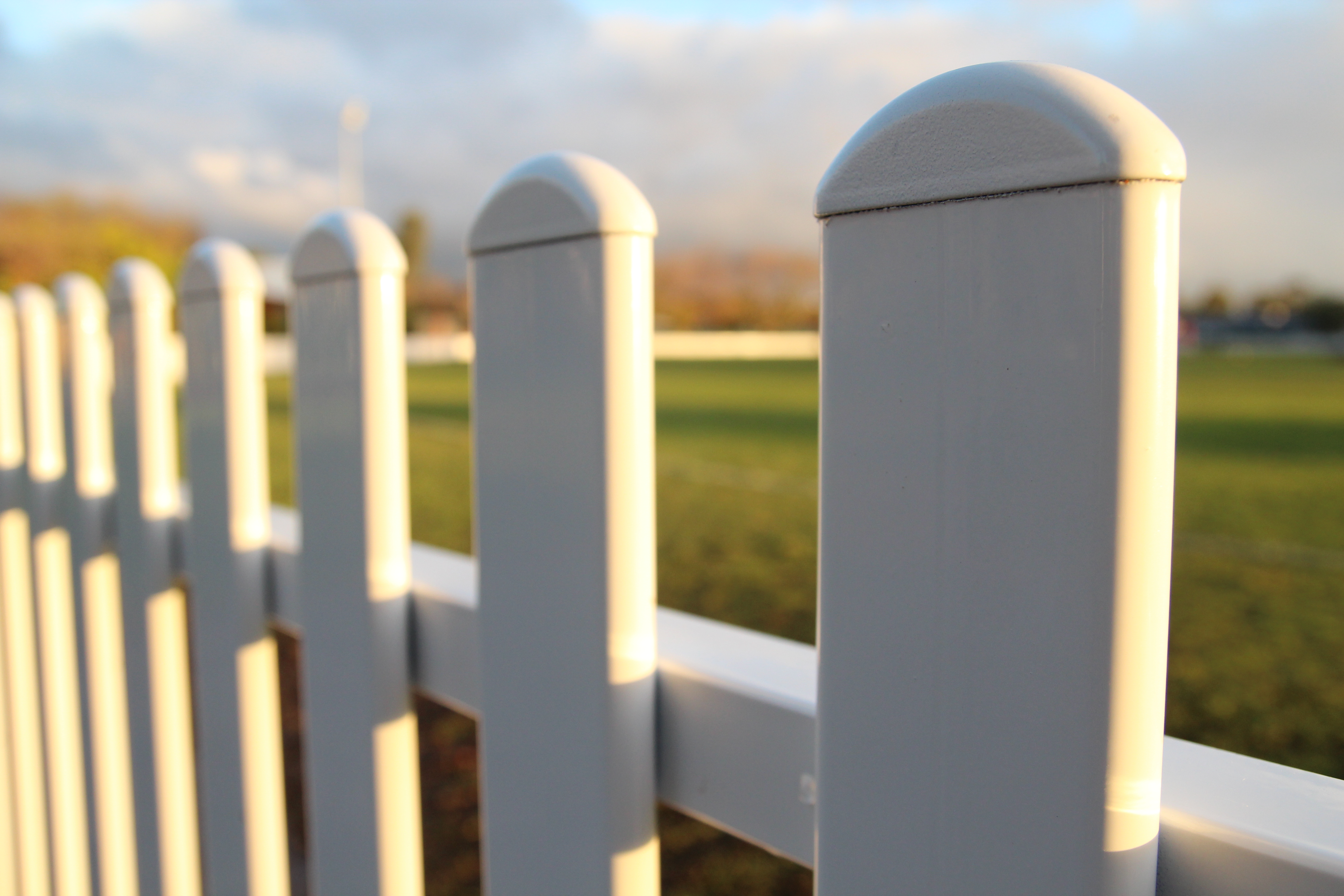

| TOP PROFILE | MOON STYLE STANDARD (FLAT TOP OPTIONAL) |
| RAIL SIZE | 40 x 40 x 1.6mm |
| PICKET SIZE | 75 x 16 x 1.0mm |
| PICKET SPACING | 63mm GAP |
| POST SIZE | 65 x 65 x 1500mm LONG |
| POST SPACING | 2415mm GAP BETWEEN POSTS |
| MATERIAL | Pregalvanised steel hollow tube to AS1450-2007 and AS1397:2001 |
| WELD TYPE | SILICONE BRONZE |
| PRE-TREATMENT | 7 Stage Immersion baths to AS4506-2005 |
| FINISH | Polyester powder coat to AS 4506:2005 Metal finishing - Thermoset powder coatings |
CHASING SOMETHING?
WHY GO A BLUEDOG FENCE?
Bluedog Fences products comply with Australian Standards and come with a 10 year colour fastness warranty, providing our customers with value for money and peace of mind.
Quality Australian Supply Partners
Bluedog Fences won’t compromise on quality, which is why we use the highest quality Australian steel. Our steel is cleaned using an immersion method, effectively cleaning the steel inside and out to ensure protective coating is applied effectively through our fully automated state of the art powder line.
.
Silicon Bronze Welding
Employing silicon bronze welding ensures steel is welded at a cooler temperature than normal welding techniques. This means the zinc coating won’t penetrate the steel as much as welding at a higher temperature.
Our staff are trained and accredited in engineering and fabrication to ensure the best possible weld strength and quality of finish.
THE BENEFITS OF BUYING A BLUEDOG FENCE
-
Special Coating
The iconic blue dog is born with a pure white coat before growing into a weather-resistant double coat.
A Bluedog Fence works from the same principles, beginning with 100% Australian raw steel before receiving a zinc coating to deliver superior protection against corrosion and rust - we call it the coat made for Australian conditions.
-
Aussie Bred
With Aussie ingenuity and determination, our innovative products have been designed with strength and safety in mind, and often exceed the Australian Standard.
By choosing a Bluedog Fence, you’re supporting a home-grown Australian business and local jobs for a team that understands your job and the unique conditions you’re working in.
-
Value for Money
With Bluedog Fences, it’s not just another fence. We promise to stand the test of time and look great for longer with our 10 year colour fastness warranty.
Our products outlast the competition thanks to 100% Australian steel, superior zinc coating and a commitment to innovation to deliver safety, security and peace of mind.
-
Reliability
At Bluedog Fences, we believe in doing things right the first time. Our lean manufacturing process is designed to keep our whole pack working in an organised, safe and clean working environment so we can deliver the highest quality fencing products, every time. Like all good working dogs, we’re dynamic, nimble and competitive - and always ready to work.
